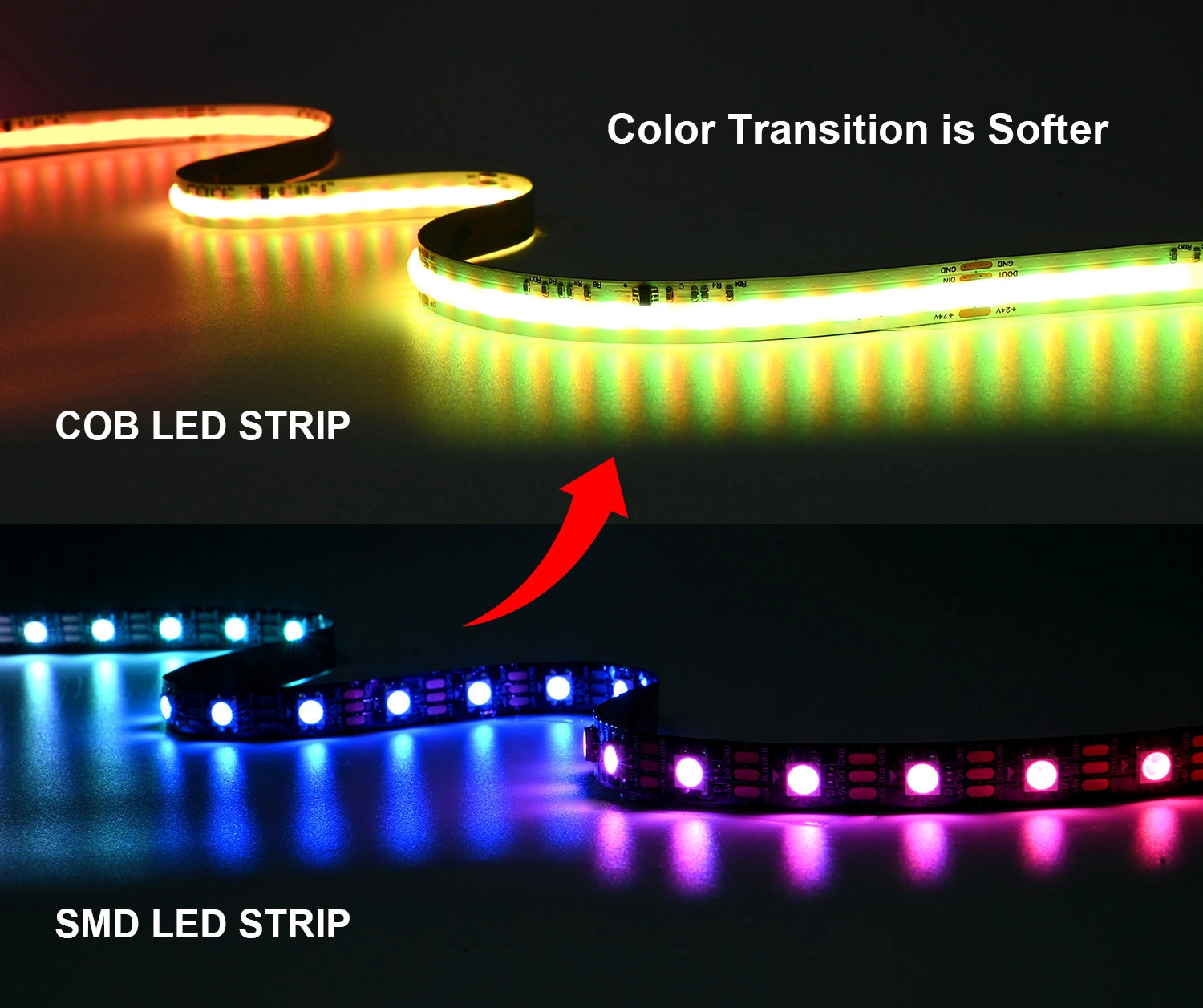

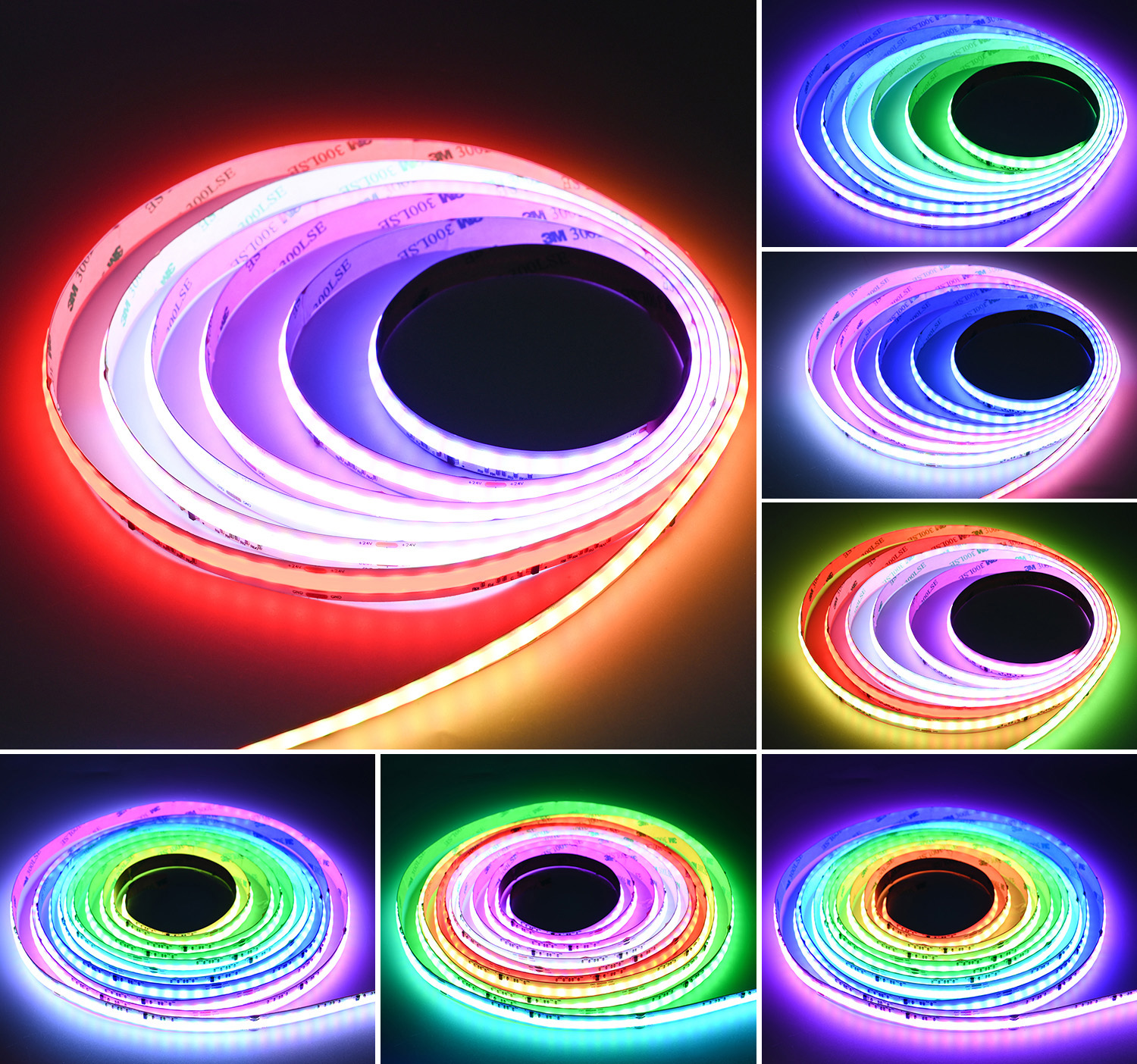

COB Pixel LED Strips
stars, based on 0reviews
Product Specifications:
| Product Name | COB Pixel LED Strips |
| LED type | 5050 SMD LED |
| IC type | WS2811/WS2818 |
| Emitting color | Digital RGB/RGBW |
| LED Q'ty | 720leds/m |
| Pixel Q'ty | 20pixel/m |
| LED View angle | 180 Degree |
| PCB Color | White/Black |
| IP Rating | IP20, IP65, IP67, IP68. |
| Length/Roll | 5M/Roll, strip length can be customized |
| Working Voltage | DC24V |
| Certification: | CE, EMC, FCC, LVD, RoHS |
| CRI (Ra>): | 80 |
| Warranty(Year) | 3-Years |
Model | LED Qty | IC Qty | Voltage | Max Power | Gray Scale | Color | Width |
NSS-2811S420RGB-24VCOB | 420 | 10 | 12V | 12W/M | 256 | Digital RGB/RGBW | 10mm |
NSS-2811S576RGB-24VCOB | 576 | 16 | 16W/M | 256 | 10mm | ||
NSS-2811S720RGB-24VCOB | 720 | 20 | 19W/M | 256 | 12mm | ||
NSS-2818S720RGB-24VCOB | 720 | 20 | 23W/M | 256 | 12mm | ||
NSS-2811S896RGBW-24VCOB | 896 | 32 | 48W/M | 256 | 12mm |
Application:
It is good for the led strip project with lot pixels,such as the digital strip wall,and the addressable strip decoration for building.
